LUMINEQ DISPLAY PRODUCTS

Rugged displays

LUMINEQ thin film electroluminescent displays (TFEL) have been serving in critical applications in extreme conditions for the past 30 years.

Read more
rugged display 960x960
rugged display in cold 960x960
rugged display for oil tank 960x960
78S-960x960
Scope 960x960

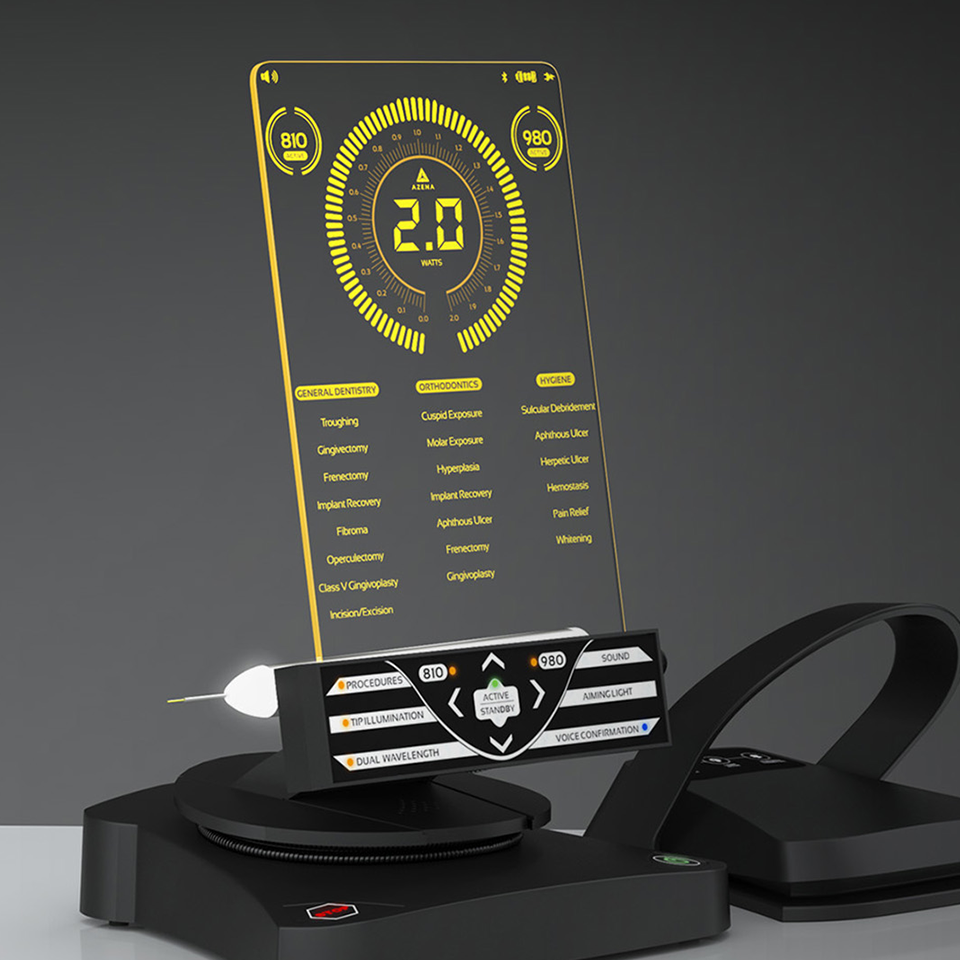

Azena 960x960

Transparent displays

LUMINEQ transparent displays (TASEL) make a great differentiator when you want to create a unique look and conveys a message of premium quality products.

Read more

In-glass displays

LUMINEQ in-glass laminated displays (IGLD) empower you to wow your customers by turning glass windows into see-through interactive displays.

Read more
touch window 960x960
bus 960x960
transparent-display-loader-machine_960x960

Features

temperature 100x100-v2

Temperature

Operates reliably from -60 °C to 105 °C.

Insant on

Instant on

<1 ms response time regardless of temperature.

Earthquake resistance

Vibration tolerant

Inorganic design for vibration and shock tolerant.

long lifetime 20 years

Long lifetime

Over 20 years of product lifetime.

Technology

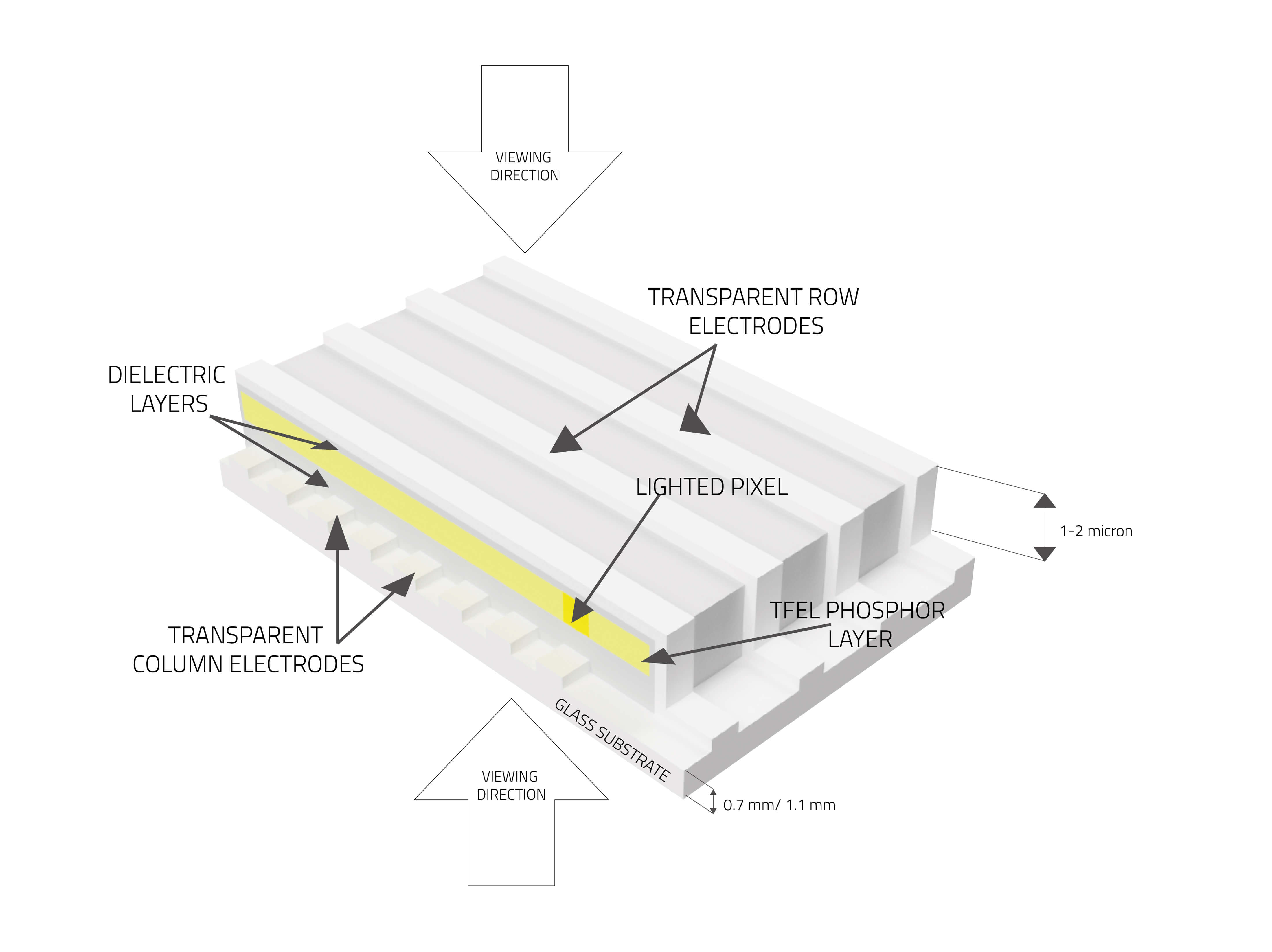

Lumineq® Thin Film Electroluminescent (TFEL) displays comprise a solid-state glass panel, an electronic control circuit and a power supply. The TFEL glass panel, the heart of the assembly, consists of a luminescent phosphorous layer sandwiched between transparent dielectric layers and a matrix of row and column electrodes.

Our rugged displays use one layer of the transparent electrode and the other layer of non-transparent electrode. When both electrodes layers are transparent, the display is transparent and the transparency is over 80%.

The circuit board, which contains the drive and control electronics, is connected directly to the back of the glass panel. A pixel on the display is lit by applying voltage to the row and column electrodes, thus causing the area of intersection to emit light.

LDI-Technlogy_updated-190327

This is how we can help you.

1 Specification

Send us your request. Our specialists will work closely with you to define the specifications and give you proposals based on your needs.

Chevron right

2 Concepting

Pick one of our standard demo displays for evaluation or concepting, or proof of concept. We can also tailor a custom demonstrator to match your need.

Chevron right

3 Customization

The size, shape, interface, design of the display can all be customized. The best way to start is to submit the configurator form to request a custom display.

Chevron right

4 Production

We provide a full display solution that includes glass, connection to the glass, and driving electronics. We will support you throughout the lifetime of the display products.

Need a custom display for your project?

Frequently Asked Questions

How are your displays different from OLED?

LUMINEQ displays are inorganic and solid-state. Unlike other types of displays including OLED, our displays are not affected by environments such as extreme temperatures, shock, vibration, or humidity. They have over 20 years of product lifetime. ... We also offer the world's most transparent displays with up to 85% transparency and 360° viewing angle.  See more

How transparent is your display?

LUMINEQ transparent segmented displays have over 80% transparency and matrix 70%. When laminated in glass, the transparency is 70%.

Do your displays have touch functionality?

Yes. The touch sensors are integrated directly in the functional display layer.
