Transparent displays

Download eBook

Features

Crystal Clear

>80% transparency for segment displays and ~70% transparency for matrix

360° viewing angle

Wide viewing angle from any direction. The information can be displayed on both sides.

Touch-Enabled

The touch sensors are integrated directly in the functional display layer.

Laminatable in glass or plastic

Can be laminated in glass or polycarbonate.

Fully Customizable

Freedom to design the type, size, and shape of the display, or even to drill.

Ultra-reliable

Inorganic solid-state design to tolerate shock, vibration, and extreme weathers.

Transparent Display Applications

LUMINEQ transparent displays can be either stand-alone or laminated in glass or polycarbonate. They offer robust heads-up-display (HUD) solutions and enable vehicle makers to convert idle glazing surfaces into usable information displays with optional touch capability. The see-through display makes a great differentiator when you want to create a unique look and convey a message of premium quality professional products.

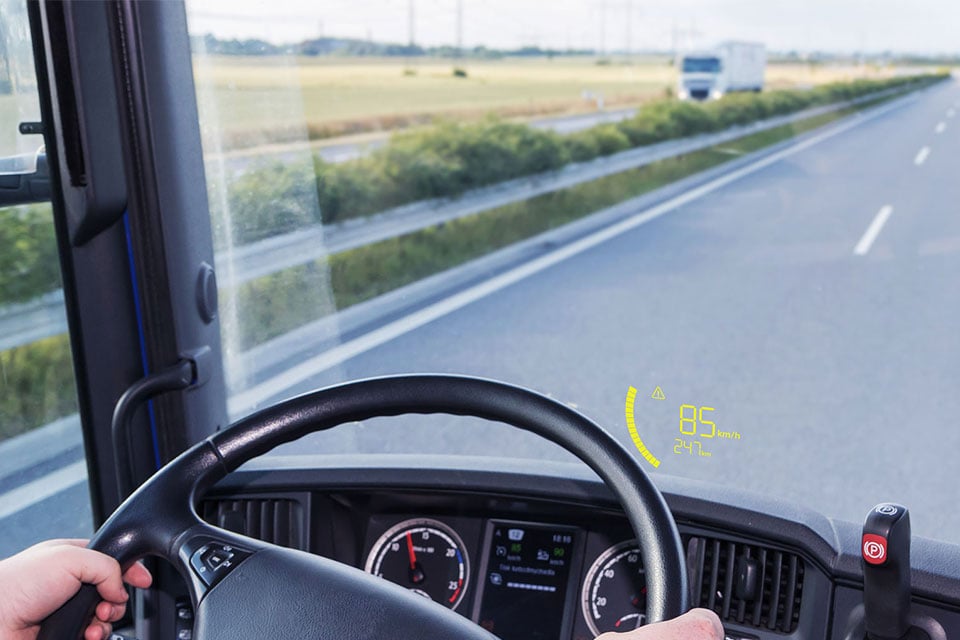

lumineq-transparent-head-up-display-for-trucks-960x640

In-Glass head-up display for trucks

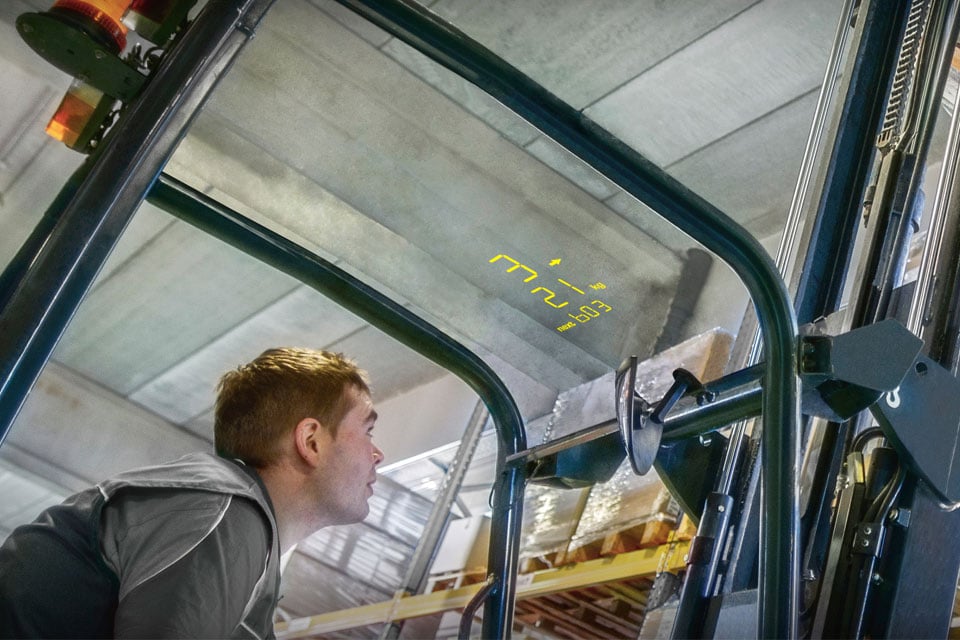

Lumineq transparent display-in-warehouse960x640

In-Plastic head-up display for forklifts

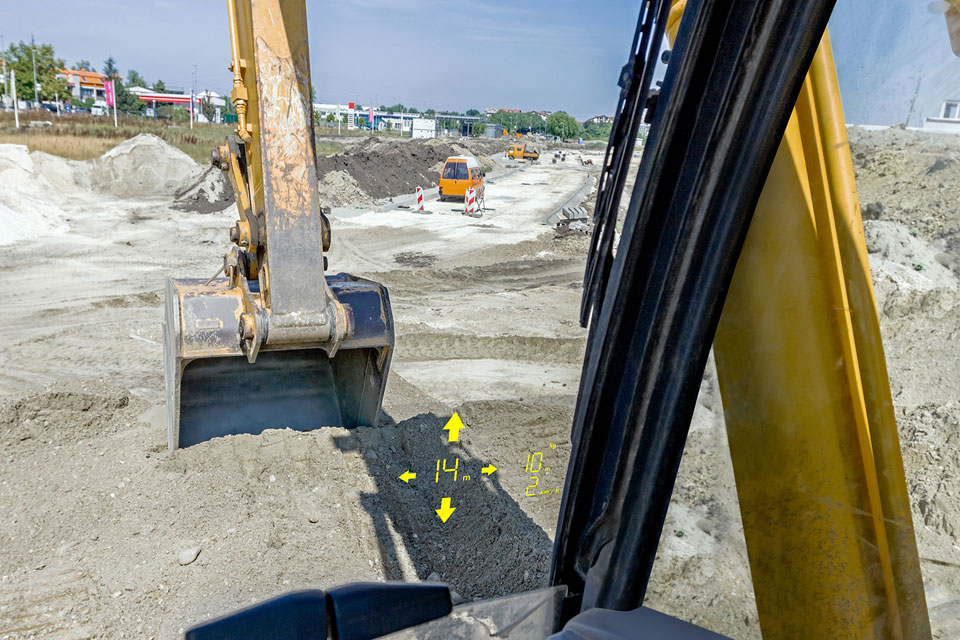

Lumineq transparent display-Excavator-960x640

In-Plastic head-up display for outdoor heavy machinery

Lumineq transparent display-EV-Car-Charging-960x640

EV charging status

Lumineq transparent display-Pedestrians_Sign02-960x640

Signaling intent

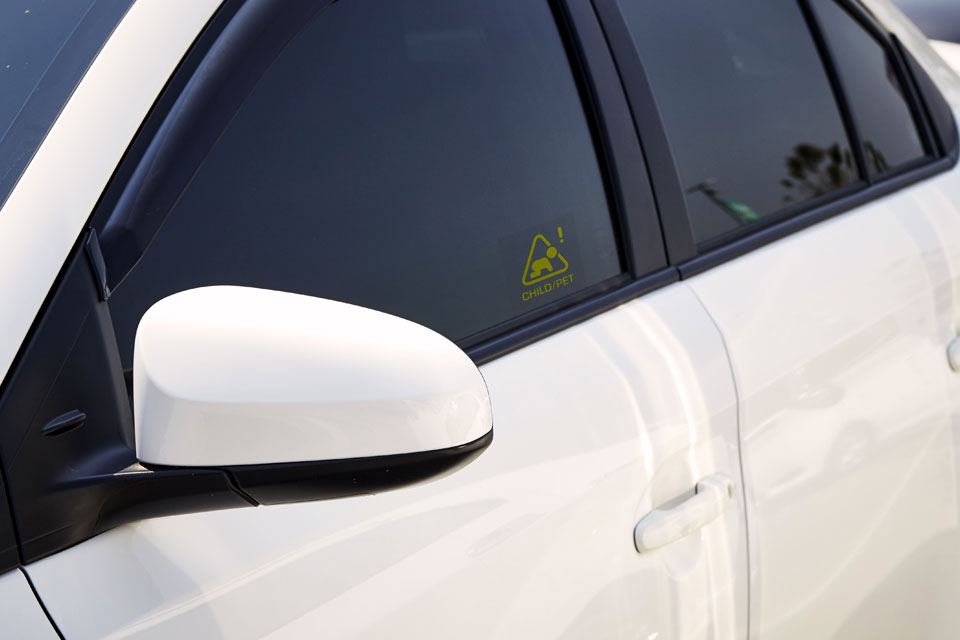

Lumineq transparent display-Child Warning mirror-01-960x640

Warning sign

greddy sirius meter powered by Lumineq transparent displays

Stand-alone digital gauges

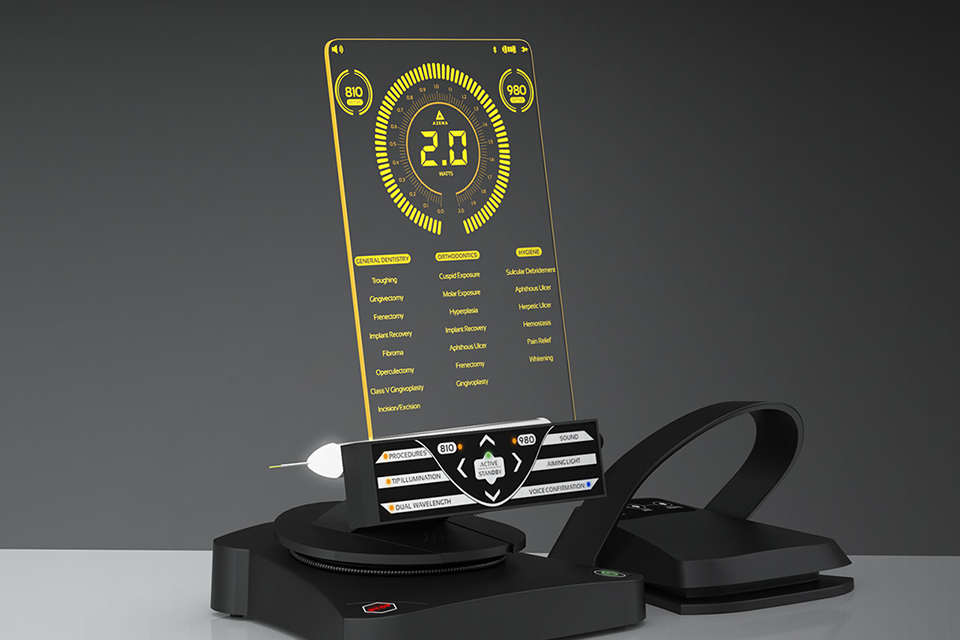

Dental laser

See all applications in different markets

Demo Products

We offer off-the-shelf matrix and segmented demo products for concepting, prototyping, and evaluation purposes. Click here to learn the difference between segmented and matrix displays.

Lumineq transparent display-road background-960x640

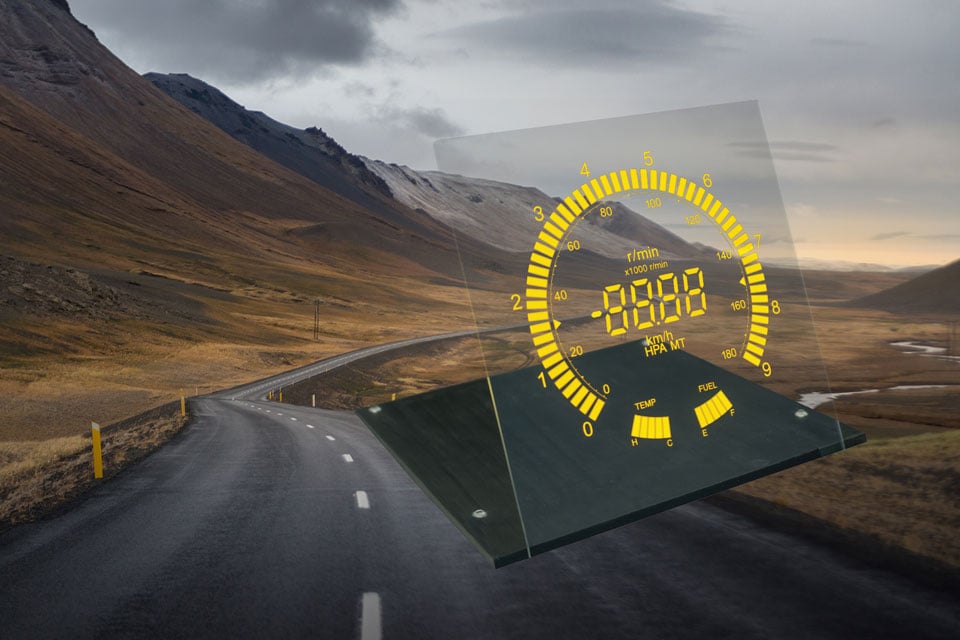

ELT120S-MultiGauge

120 segments, designed for head-up display demonstration. Options are TIP ELT120S-MultiGauge-LBA for script programming, and TIP ELT120S-MultiGauge-CAN-J1939 with CAN interface.

lumineq-transparent-display-78s-varius-960x640

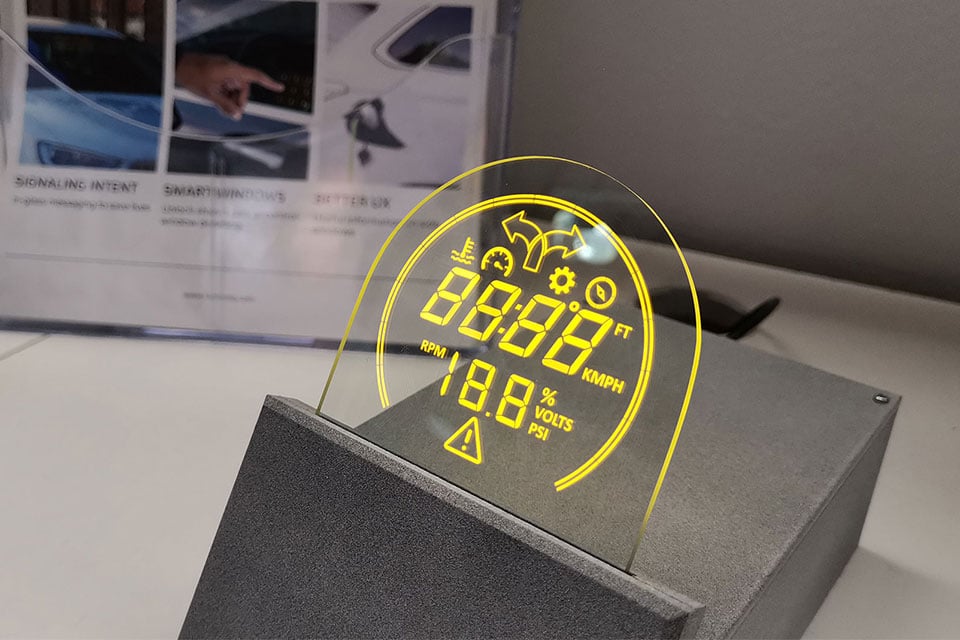

ELT78S-VARIUS

78 predefined segments, designed for head-up display demonstration. Encapsulated TIP kit and LIP kit for lamination available. Plug-and-play demo mode or Lumineq CAN mode selectable by DIP switch.

Lumineq transparent display-120kmh-960x640

ELT78S-HUD

78 predefined segments, designed for head-up display demonstration. Options are TIP ELT78S-HUD v2, TIP ELT78S-RS485, LIP ELT78S-HUD-07 v2, LIP ELT78S-RS485-07.

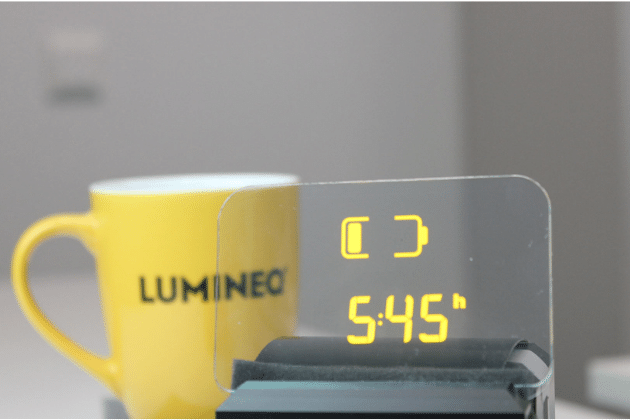

ELT41S-PEAK

Charge status display demonstrator for electric vehicle applications. 41 segments - 4x7 segments, battery icon with 5 bars, h, %, km and mi. Options are Encapsulated TIP Kit and LIP Kit for lamination.

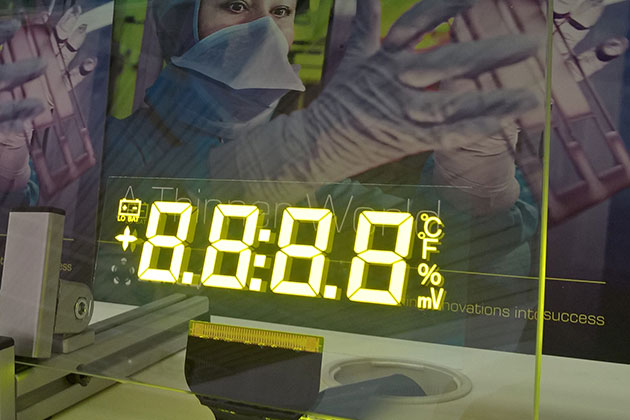

ELT40S

40 segments. Options are encapsulated TIP Kit and LIP Kit for lamination.

ELT35S

Lamination Introduction Package LIP ELT35S-07 Kit available. 35 segments, glass substrate 0.7mm thick.

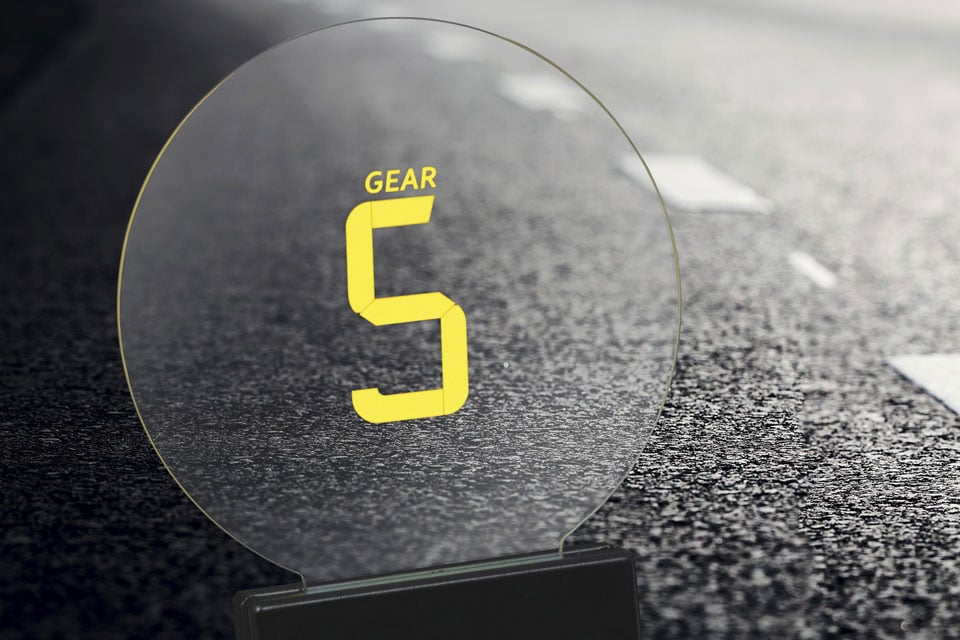

Lumineq transparent display-Gear5-960x640

ELT24S

USB-powered transparent display with 24 predefined segments, active area 86 × 86 mm. Plug-and-play with pre-programmed scipt.

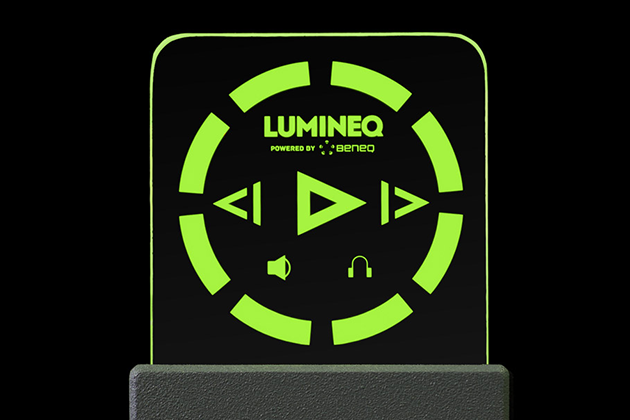

ELT15S

USB-powered transparent display with 15 predefined segments, active area 50 x 57 mm. Green and yellow color options. Plug-and-play with pre-programmed script.

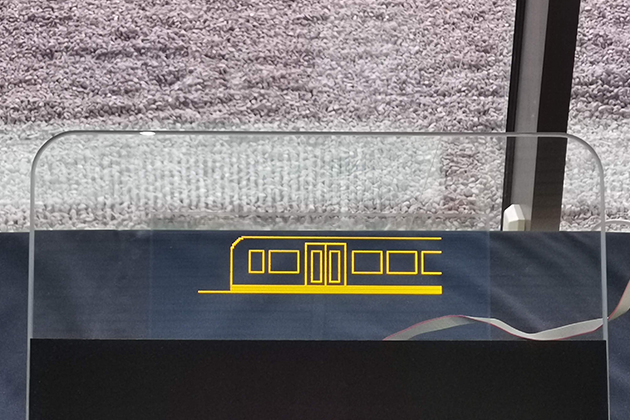

ELT160.60.100

Transparent Matrix Display. Options are Encapsulated TIP Kit and LIP Lit for lamination. Display matrix 160 x 60, 1 mm pixel pitch.

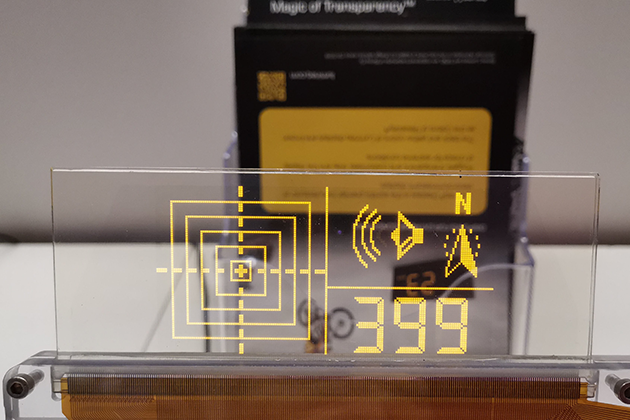

ELT160.80.50

Transparent matrix display 160 x 80, 0.5 mm pixel pitch, active area 80 x 40 mm. Encapsulated TIP Kit available.

Transparent display demos

Watch the video and check out more demos that showcase the features of LUMINEQ transparent displays, such as high transparency, humidity resistant, customizability. Once the project goes to the mass production phase, we work closely with you to create custom displays.

Pros and cons of four transparent display technologies

In this video, the Ph.D. researcher Jose Rosa delves into the pros and cons of the main transparent technology displays: transparent head-up displays, LCDs, OLEDs and transparent electroluminescent technology. This research is conducted for the ImmerSAFE project, "Immersive Visual Technologies for Safety-critical Applications". Read our blog for the full analysis.
