Transparent displays for Riflescopes

Watch full video

Digital reticle to enhance riflescopes

Optics display_1920x1080-01

Digital scopes that provide dynamic reticle and critical information for precise aiming are the next innovation in hunting optics. LUMINEQ transparent displays empower scope manufacturers to bring digital reticle to the line of sight without sacrificing the optical quality or reliability of the scopes.

Ultra-rugged with excellent transmission and optical properties, the LUMINEQ digital reticle display allows line-of-sight deployment at the focal point.

Also for the first focal plane

The LUMINEQ technology enables rich segmented display content and high-resolution micro matrixes with details down to 4-5 micrometers. It allows first focal plane deployment for the riflescopes.

lumineq for first focal plane 1920x1080

How does it work?

Scope manufacturers can seamlessly integrate the LUMINEQ digital reticle display by placing it in between the optics lens system, replacing the traditional mechanical reticle. No complicated projection system is needed. The transparent display offers a great combination of self-emitting lit-up segments and traditional glass-etched reticle to ensure that the reticle works in any conditions.

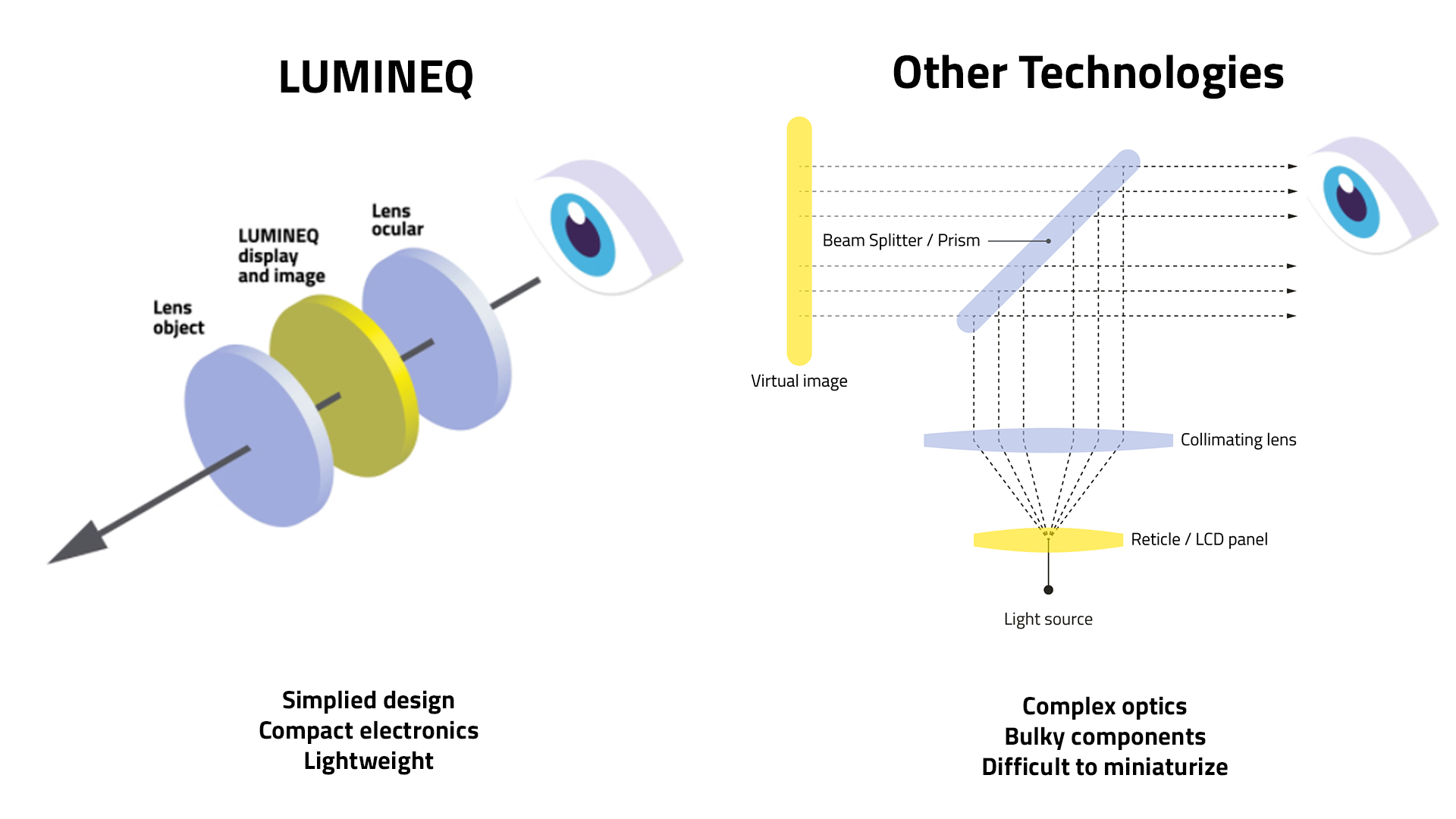

Competing technologies

Currently there is no other rugged display technology that is placed straight to the optical path of optical devices. Competing technologies like OLED and LCD displays are placed outside of the optical path, needing complex and delicate optics to project the image to the line of sight and requiring additional space within the optical device. Typically, these technologies and the beam splitters and prisms used introduce light scattering and glare within the optical path that weakens the displayed image, hence the critical information displayed. The materials used in OLEDs and LCDs are affected by the environment, they're sensitive to moisture, sunlight, heat and cold.

Transparent display for optics comparison 1920x1080


Earthquake resistance


Inorganic solid-state design to tolerate shock, vibration, and extreme temperatures from -100°C to 105°C.

Crystal Clear

Optical uniformity

Clear as glass with over 90% transparency, good optical clarity with minimum haze.


Reduced weight

Reduce weight by up to 1kg by transforming mechanics to digital solutions with simplified construction.


Low power consumption

Self-emissive technology. Power consumption is as low as a few milliwatts.


Adjustable brightness

Adjustable brightness from a few nits, or candela, to thousands.

Fully customizable

Fully customizable

Offer fully custom reticle designs and cost-efficient standardized driver board.



ELT32S-RETICLE-BAT is a LUMINEQ technology demonstrator for scope and night vision device manufacturers. It enables manufacturers to easily evaluate and prototype LUMINEQ displays in existing optical systems for proof of concept and real-world testing of the technology. Learn more.


ELT119S-RETICLE is a mass production-ready digital reticle display that LUMINEQ will unveil at Shot Show 2022. It has a comprehensive reticle design, which includes BDC reticle with Christmas tree-shaped holdover dots, dynamic drop dot and range information. Learn more.

LUMINEQ optics concept_1920x1080
