Transparency meets touch

June 6, 2018

Transparency meets touch

LUMINEQ transparent displays, enabled by atomic layer deposition (ALD), are the world’s most transparent and reliable displays. Lumineq transparent displays are used in applications where fully transparent display properties are required. Transparency requirements may be for functional reasons - to display critical information in the line of sight, or for aesthetic reasons - to combine transparency with 360° viewing angles and jaw-dropping design.

Introducing touch-enabled LUMINEQ transparent displays

The world’s most transparent displays are now expanding their already revolutionary technology and bringing you touch capability!

The new Lumineq touch technology (Lumineq Touch) opens endless possibilities for applications requiring transparent displays.

Open a new window in display design with Lumineq Touch

Where there’s glass, there’s a window of opportunity for integrating touch-enabled Lumineq transparent displays. Thanks to Lumineq’s transparent technology, Lumineq Touch blends in perfectly with its design surroundings.

Vehicle window keypad concept

Lumineq Touch technology is excellent in vehicular window designs for:

  • Unlocking your car door
  • Entering a code for car sharing vehicles
  • Adjustable sunroof dimming – go from dark to clear with a single touch!

Smart window keypad concept

Smart interior designs demand smart technological implementations, and there’s nothing cooler than touch glass displays in homes and offices. Lumineq Touch technology is excellent:

  • As a security door’s keypad
  • As a clear display for window glass
  • As an entry pad for meeting room doors
  • For adjustable window dimming

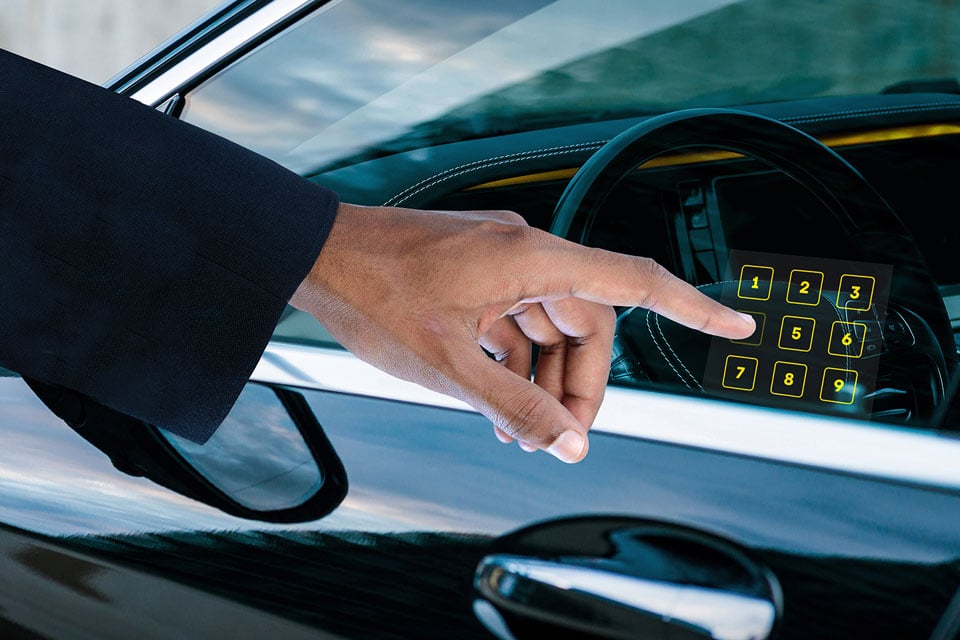

Lumineq transparent display-side window-touch
Lumineq Touch transparent display security door keypad concept

Any glass surface can become a touch-enabled display

You can go even further in cool and simple design by elegantly integrating display technology in interior design and décor.

  • Add touch-enabled transparent displays to all types of glass surfaces
  • Let your imagination flow!

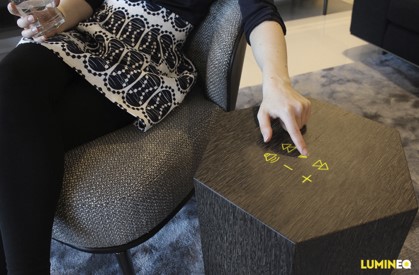

Speaker with display
Lumineq Touch transparent display volume keypad concept

Kiss complexity goodbye

Lumineq Transparent Thin Film Electroluminescent displays (TASEL) comprise a solid-state glass panel and electronic control circuit. The glass panel consists of a luminescent phosphorous layer sandwiched between transparent dielectric layers and conductive ITO electrodes. A pixel/segment is lit by applying voltage to the electrodes, causing the area of intersection to emit light.

The functional thin film layers are manufactured using ALD. ALD enables very precise nanometer–thick, pinhole–free and totally conformal thin films making the Lumineq transparent displays reliable and inherently rugged with unique transparency and performance characteristics.

The new Lumineq Touch technology is fully integrated into the segmented Lumineq transparent display technology and does not make the display glass panel any thicker, heavier, complex or any less durable. Lumineq Touch uses unique In-Cell PCAP where the touch sensors are integrated directly in the already existing functional layers of the display technology. There are no additional layers, as the touch sensitive areas use the existing indium tin oxide (ITO) layers that are used for the electroluminance display.

Technology 2

Lumineq Touch transparent display technology layers:
1. Glass, 2. ITO, 3. phosphor layer (DSD), 4. ITO, 5. glass

Lumineq Touch also integrates with Lumineq in-glass laminated displays.

Be among the first to integrate Lumineq Touch!

Let’s break design boundaries and integrate our new touch-enabled Lumineq transparent displays with your product! Contact us for more information.
